Specification
Produc name
|
Laser Range Finder Module
|
Model
|
ODR-S
|
Laser Type
|
LD (Laser Diode)
|
Laser Wavelength
|
808nm
|
Light resistance
|
100K LUX≥5m Outdoor application
|
Ranging Principle
|
ITOF (Phase Shift)
|
Ranging Scope
|
0.05-20m
|
Measuring Frequency
|
100Hz
|
Ranging Resolution
|
1cm
|
Ranging Accuracy
|
3%
|
Input Voltage
|
3.5~5.5VDC
|
Communication Interface
|
UART (I2C Standard)
|
UART Baud
|
UART 115200 bps/ I2C maximum 400k
|
Communication voltage
|
TTL 3.3 VDC
|
Communication protocol
|
Vendor-specific
|

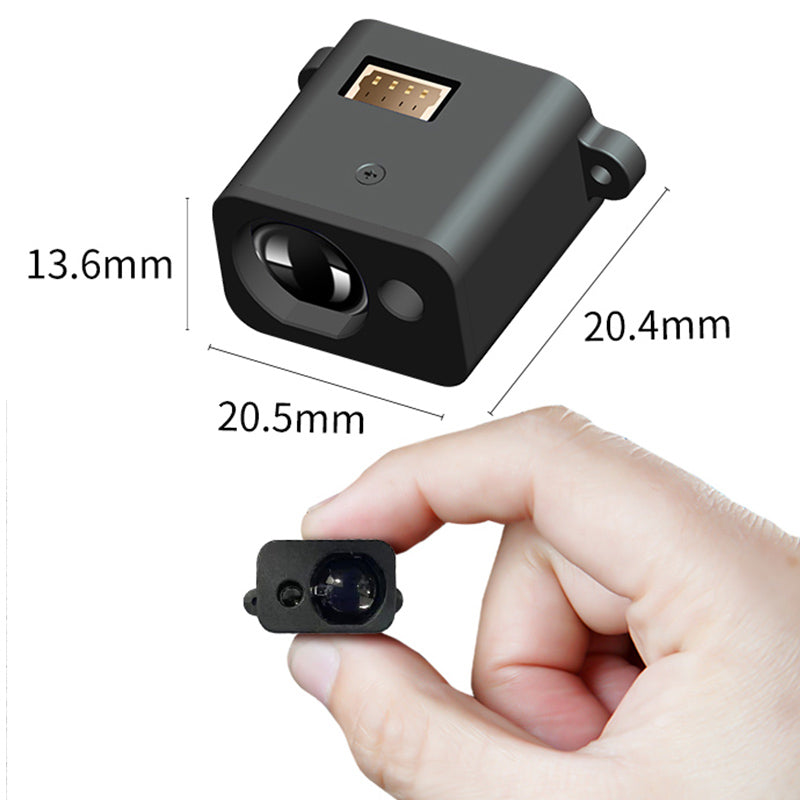

Dimension
|
20.5x13.6x20.4mm
|
Weight
|
7g
|
Operation temperature
|
From -10℃ to 50℃
|
Storage temperature
|
From -20℃ to 70℃
|

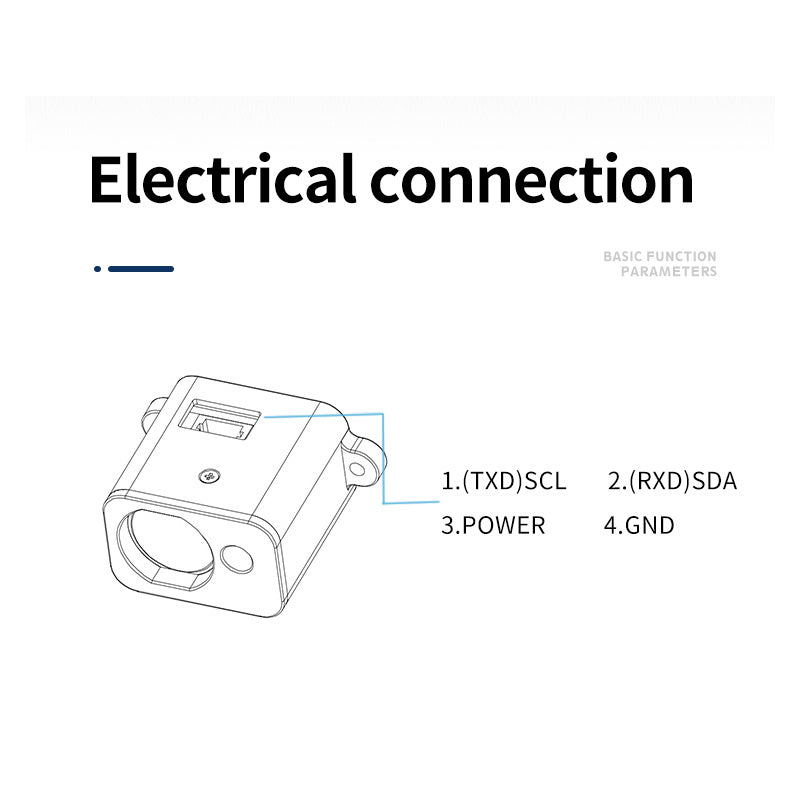

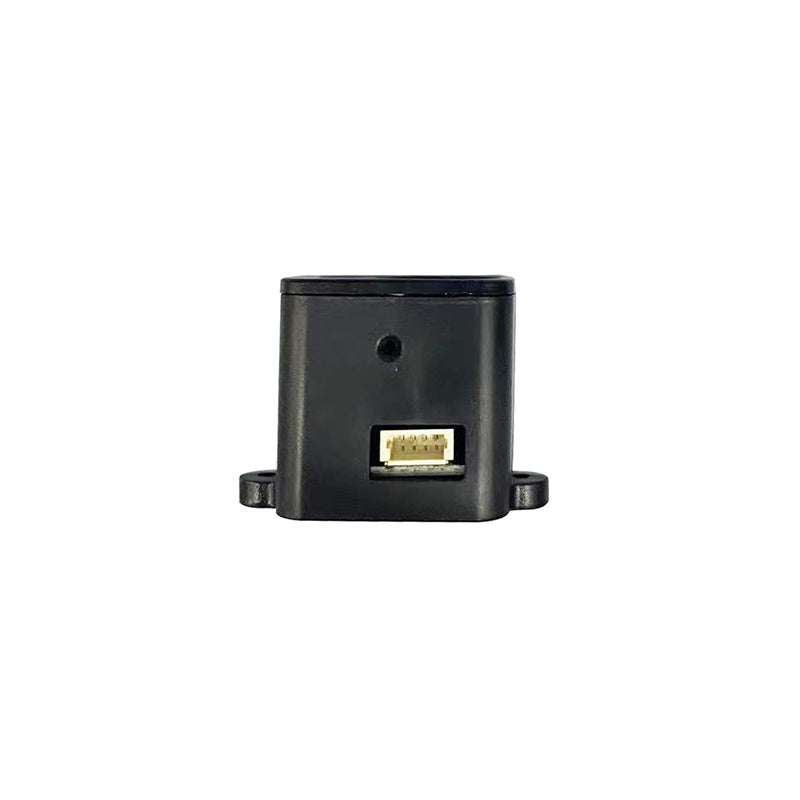

Electrical Interface
|
4 Pin
|
Product Description
1. Features: High precision Stable performance Compact size Flexible installation Easy integration
2. Application: Service robot positioning, Industrial/animal husbandry material level detection, Intelligent garbage classification, Crane driving positioning, Security camera trigger, Parking spot detection, Rangefinder etc.
3. Customized items: Ranging Scope, Communication Interface, Structure design
