Specification
Model Number
|
ID-R
|
Laser Type
|
LD (Laser Diode)
|
Laser Wavelength
|
650nm
|
Ranging Principle
|
ITOF (Phase Shift)
|
Ranging Scope
|
0.045~60m
|
Ranging Resolution
|
1mm
|
Ranging Accuracy
|
± 2mm (≤10m); ± 2mm ± 0.05x (D-10m) (>10m D=Distance)
|
Input Voltage
|
3.3-3.6VDC, Suggested 3.5V
|
Communication Interface
|
UART
|
UART Baud
|
115200 bps
|
Communication voltage
|
TTL 3.3 VDC
|
Communication protocol
|
Vendor-specific
|
Dimension
|
11x20.6x25.5mm
|
Weight
|
5g
|
Operation temperature
|
From -10℃ to 50℃
|
Storage temperature
|
From -20℃ to 70℃
|

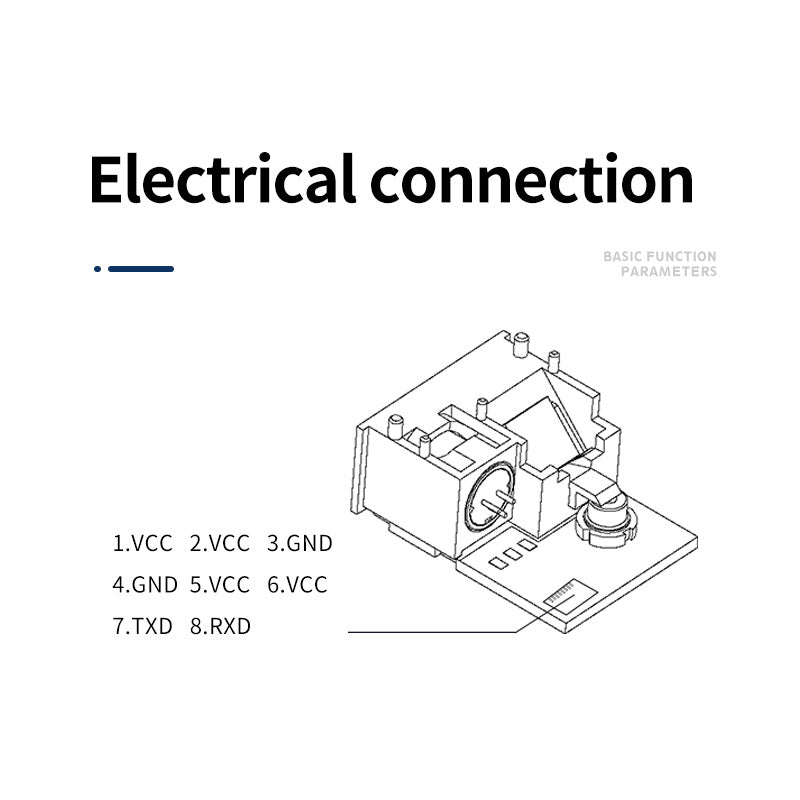

Electrical Interface
|
Spacing 0.5mm, 8 Pin
|
Product Description
1. Features: High precision Stable performance Compact size Flexible installation Easy integration
2. Application: Service robot positioning, Industrial/animal husbandry material level detection, Intelligent garbage classification, Crane driving positioning, Security camera trigger, Parking spot detection, Rangefinder etc.
3. Customized items: Ranging Scope, Communication Interface, Structure design
