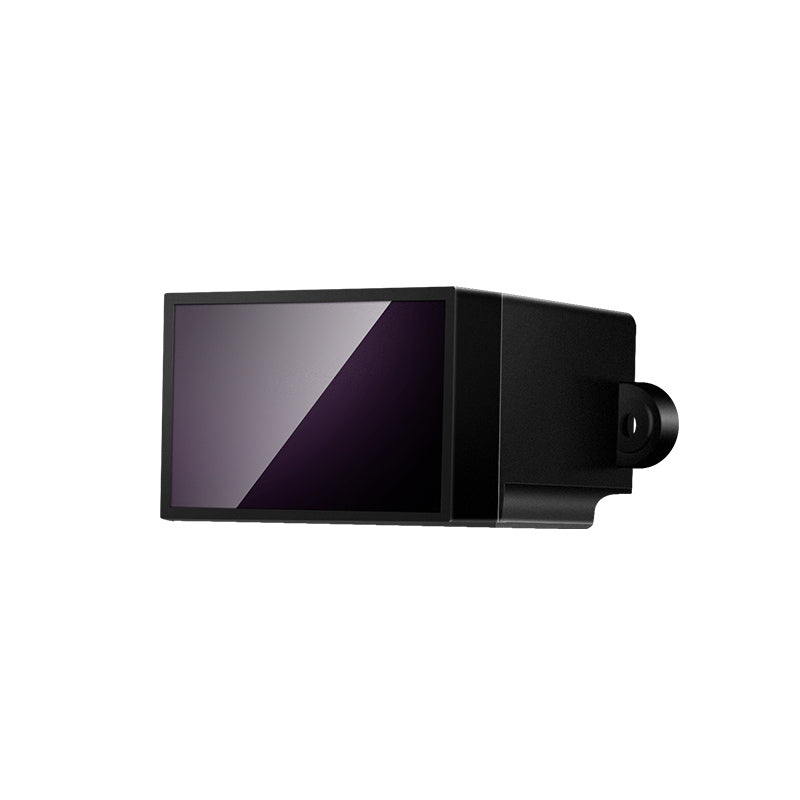

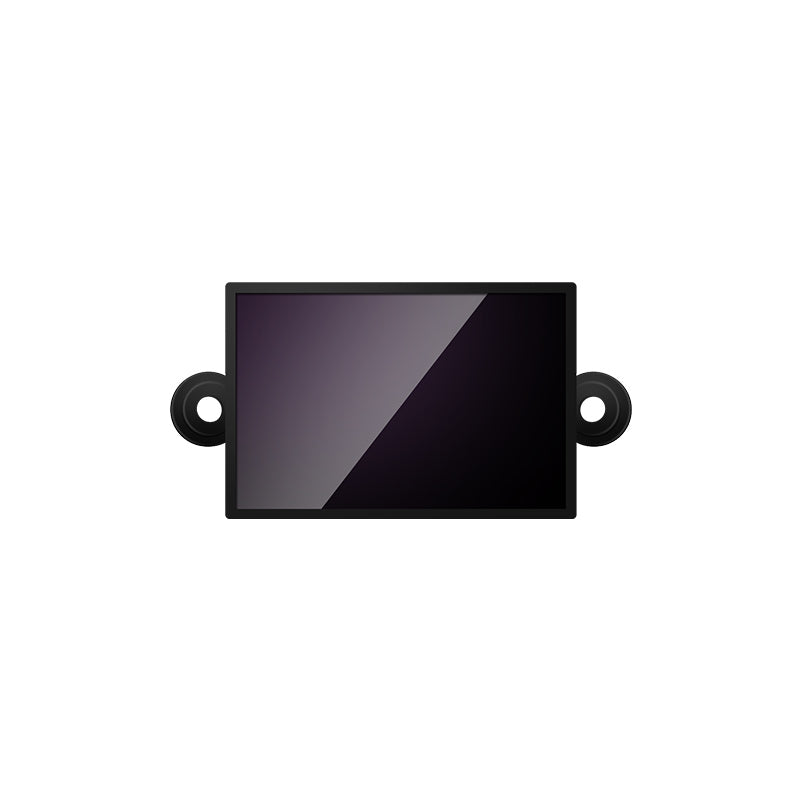

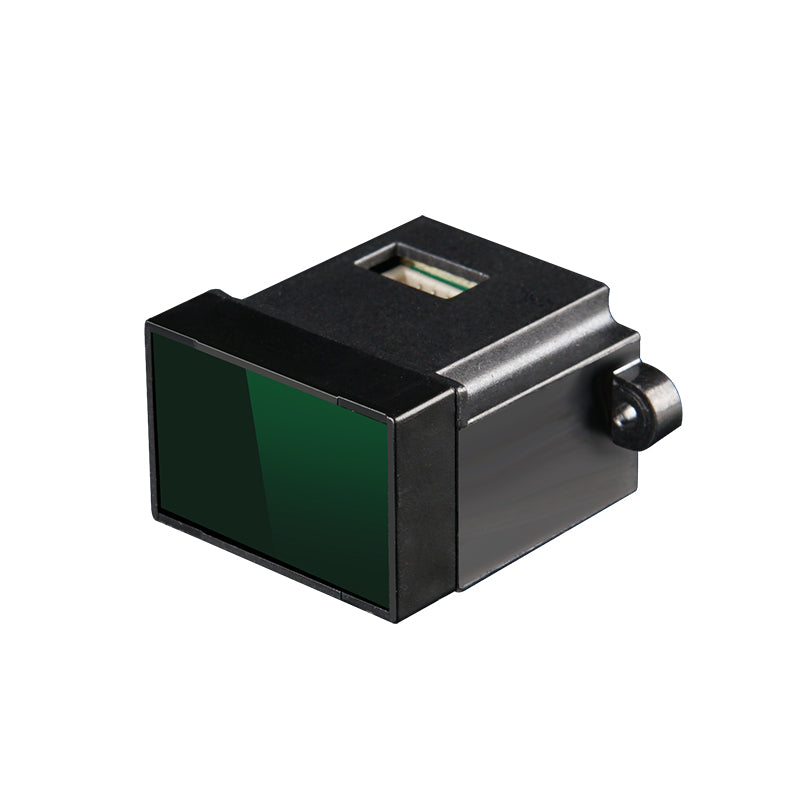

![5/10/20/30M Laser Distance Sensor | Short Distance | High Precision | ITOF Phase Method | OEM ODM](http://www.accuyard.com/cdn/shop/files/Ha6cab4250647421484b0e1bf9f6759ddu.jpg?v=1719293663&width=1445)
![5/10/20/30M Laser Distance Sensor | Short Distance | High Precision | ITOF Phase Method | OEM ODM](http://www.accuyard.com/cdn/shop/files/Ha14bb4d8db1b4cf5a4082c133339d8b3s.jpg?v=1719293663&width=1445)
![5/10/20/30M Laser Distance Sensor | Short Distance | High Precision | ITOF Phase Method | OEM ODM](http://www.accuyard.com/cdn/shop/files/H393d249deae947f48cf7e3c4921da254w.jpg?v=1719293664&width=1445)
![5/10/20/30M Laser Distance Sensor | Short Distance | High Precision | ITOF Phase Method | OEM ODM](http://www.accuyard.com/cdn/shop/files/H873ab0ea54f1479eba10f238d7464ab13.jpg?v=1719293664&width=1445)
![5/10/20/30M Laser Distance Sensor | Short Distance | High Precision | ITOF Phase Method | OEM ODM](http://www.accuyard.com/cdn/shop/files/He0760f797d7d463285e91bb064d010ffK.jpg?v=1719293664&width=1445)
![5/10/20/30M Laser Distance Sensor | Short Distance | High Precision | ITOF Phase Method | OEM ODM](http://www.accuyard.com/cdn/shop/files/H68987674a41a4c24a6899d3c28f3fa93J.jpg?v=1719293664&width=1445)
Specification
Product name
|
Laser Range Finder Module
|
Model
|
ODR-B
|
Laser Type
|
LD (Laser Diode)
|
Laser Wavelength
|
780nm
|
Light resistance
|
100K LUX≥10m Outdoor application
|
Ranging Principle
|
ITOF (Phase Shift)
|
Ranging Scope
|
0.05m-5m/10m/20m/30m
|
Measuring Frequency
|
50Hz/100Hz
|
Ranging Resolution
|
1cm
|
Ranging Accuracy
|
±2cm (≤2m); ±5% (≤20m)
|
Input Voltage
|
3.5~5.5 VDC
|
Communication Interface
|
UART (TTL Standard)
|
UART Baud
|
115200 bps
|
Communication voltage
|
TTL 3.3 VDC
|
Communication protocol
|
Vendor-specific
|
Dimension
|
20x22x14mm
|
Weight
|
11g
|
Operation temperature
|
From -10℃ to 70℃
|
Storage temperature
|
From -20℃ to 85℃
|

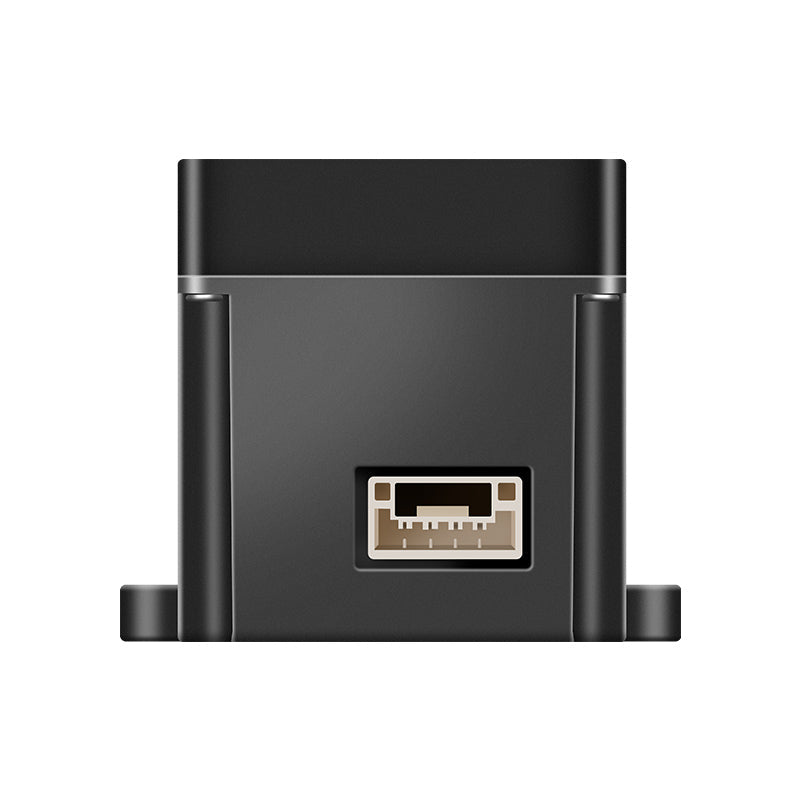

Electrical Interface
|
4 Pin
|
